100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | DISCUSS PERSONALLY |
|---|---|---|---|
| Packaging Details : | Anti-collision plastic film | Delivery Time : | 15DAYS |
| Payment Terms : | T/T | Supply Ability : | 1200 SETS/ YEAR |
| Place of Origin: | CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | YDZ |
|
Detail Information |
|||
| Highlight: | reciprocating electric steam boiler industrial,environmentally friendly electric steam boiler industrial,environmentally friendly high pressure steam generator |
||
|---|---|---|---|
Product Description
1. Use the most suitable fuel equipment for biomass fuel combustion - Reciprocating grate
2.In the design structure, compared with the traditional boiler furnace space, and a very reasonable secondary air arrangement, it is advantageous to instantaneously precipitate a large amount of volatility and full combustion when burning biomass fuel. The control system uses high brightness.
3. The steam genarator has the characteristics of high thermal efficiency, no pollution, no emission, compact structure, etc. It is an alternative to electric, combustion and gas steam boilers.
1. Easy to install, save a lot of installation materials and costs.
2. The fuel used is energy-saving and environmentally friendly biomass fuel with a wide range of sources, affordable ,low operating costs
3. One-step automatic control, easy to operate, safe and worry-free.
| Fuel Cost analysis(Take 100 kg per hour as an example) | ||||
| Equipment selection | Steam volume | Energy consumption | Unit Price | Operating costs |
| Electrothermal steam boiler | 100kg | 72 kw/h | 0.08 USD/kw | 10.91 USD |
| Fuel steam boiler | 100kg | 7 kg/h | 0.53 USD/kg | 7.42 USD |
| Gas steam boiler | 100kg | 8 m³/h natural gas | 0.34 USD/m³ | 5.45 USD |
| Biomass steam boiler | 100kg | 20 kg/h wood pellet | 0.08 USD/kg | 3.03 USD |

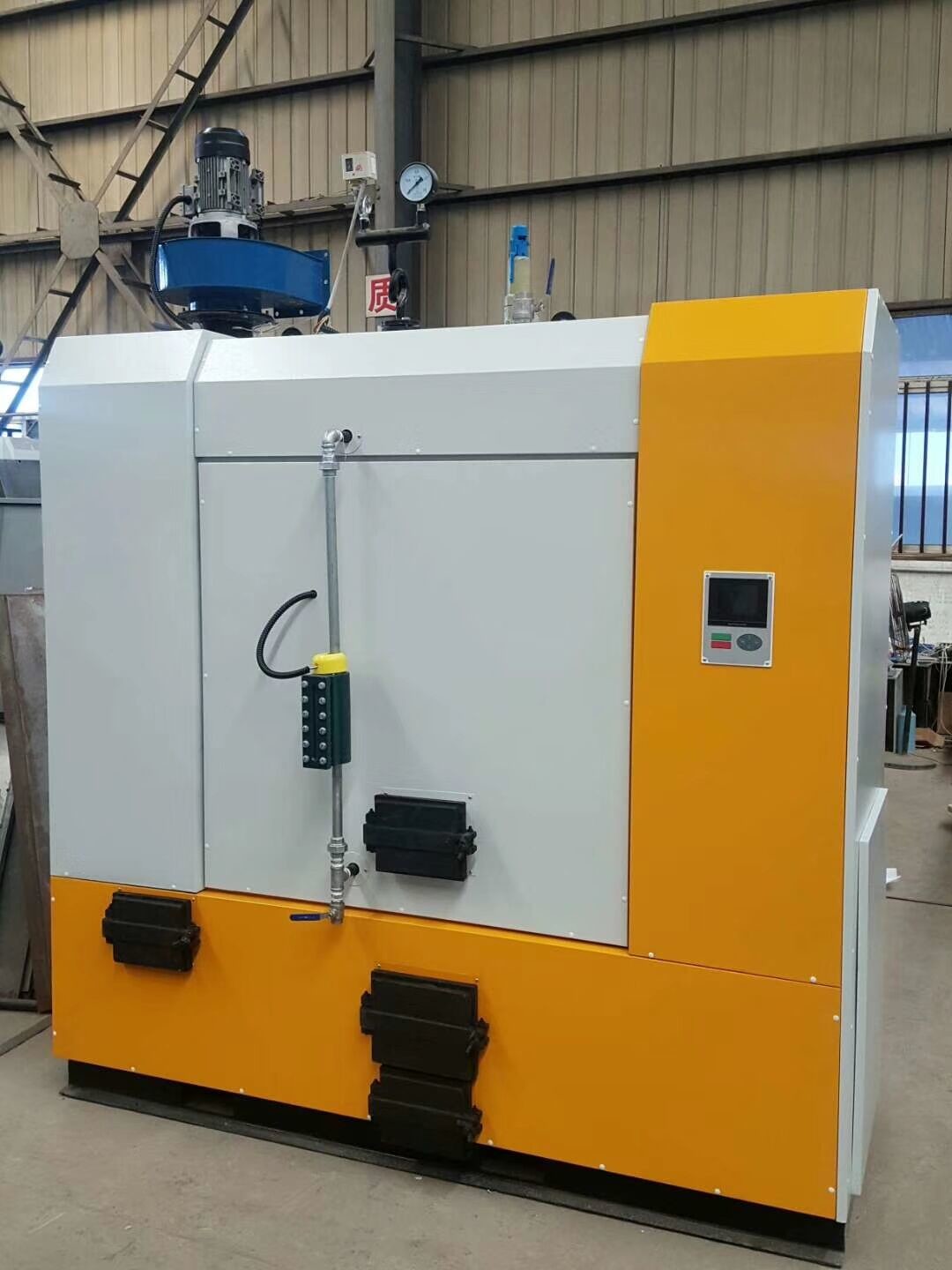

300kg vertical portable small steam generator technical |
|||||||||||||
| Rated evaporation | Rated pressure |
Rated steam tempe rature |
Feed water temper ature |
Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
| L | W | H | |||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
| 300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 49.3 |
| 500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
| 1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
The 300kg vertical portable small steam generator application area:
Application field description:
1.For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
2.For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
3.For biological equipment industry: sterilizer, school laboratory, thermal test
and so on...
our engineering case:
1.Henan Swet Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
Our Factory
Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Pre-sale service:
1.24 hours phone,email,trademanager online services;
2. We will provide you with high-quality technical solutions, product design instructions.
3.We welcome you to visit our boiler factory to have a look and check;
After-sale service:
1.we will delivery the machine as soon as possible according to your requirement,within 20days;
2.We will send rich practiced experience engineers to you to install and test the machine and train
3.We will give you one year guarantee time after the machine can run well;
