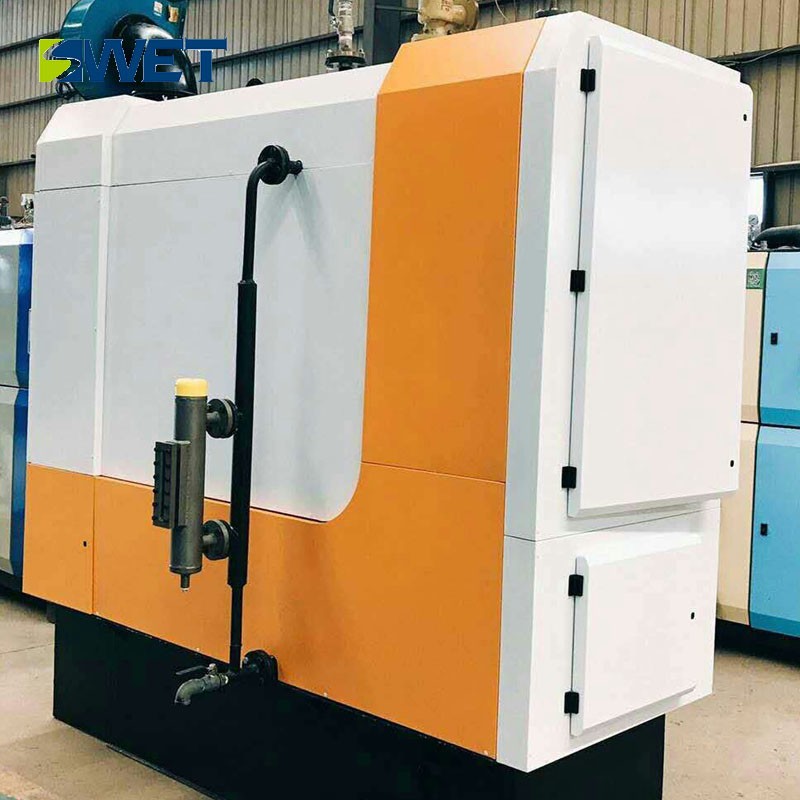

100kg/H - 3000kg/H Wood Biomass Industrial Steam Boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1500 Set/Sets Per Year |
| Place of Origin: | HENAN CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | LSS |
|
Detail Information |
|||
| Rated Evaporation: | 400kg | Steam Pressure: | 0.7Mpa |
|---|---|---|---|
| Rated Steam Temperature: | 170℃ | Thermal Efficiency: | 93% |
| Color: | Customer's Requirement | Design Fuel: | Biomass |
| Warranty: | 12 Months | Weight: | 4100kg |
| Dimension: | 2350x1750x2200mm | Material: | Boiler Steel |
| Highlight: | oil steam boiler,industrial electric steam boiler |
||
Product Description
The biomass steam boiler description
1. The fuel is a renewable biomass fuel, and its operating cost is one-fifth of the electric boiler, which is one-third of the oil boiler.
2.The furnace adopts three-dimensional three-dimensional circulation air distribution, and has a secondary oxygen supply port. The combustion is complete, and the smoke is not visible to the naked eye, which fully meets the national requirements for boiler discharge.
3. The safety protection function of the control system has multiple protections such as low water level, overheating and overpressure to ensure no safety hazards.
The biomass steam boiler technical parameters
| Biomass steam generator technical | |||||||||||||
| Rated evaporation | Rated pressure | Rated steam temperature | Feed water temperature | Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
| L | W | H | |||||||||||
| Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
| 80 | 0.7 | 170℃ | 20℃ | 90% | 26.5 | 15 | 15 | 20 | 1600 | 900 | 1750 | 0.6 | 13.6 |
| 100 | 0.7 | 170℃ | 20℃ | 90% | 26.8 | 15 | 15 | 20 | 1600 | 900 | 1900 | 0.65 | 16.4 |
| 150 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 1650 | 900 | 1900 | 0.7 | 24.6 |
| 200 | 0.7 | 170℃ | 20℃ | 90% | 27 | 20 | 15 | 25 | 2150 | 1000 | 2400 | 1.2 | 32.8 |
| 300 | 0.7 | 170℃ | 20℃ | 93% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 46.1 |
| 400 | 0.7 | 170℃ | 20℃ | 93% | 28.7 | 32 | 15 | 25 | 2350 | 1750 | 2200/2500 | 3 | 61.5 |
| 500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 1525 | 25 | 2500 | 1800 | 2500/3100 | 4.1 | 76.8 |
| 600 | 0.7 | 170℃ | 20℃ | 93% | 29.5 | 32 | 15 | 25 | 2500 | 1800 | 2500/3100 | 4.3 | 80 |
| 1000 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
100kg biomass steam boiler production process:
FAQ
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Pre-sale service:
1.24 hours phone,email,trademanager online services;
2. We will provide you with high-quality technical solutions, product design instructions.
3.We welcome you to visit our boiler factory to have a look and check;
