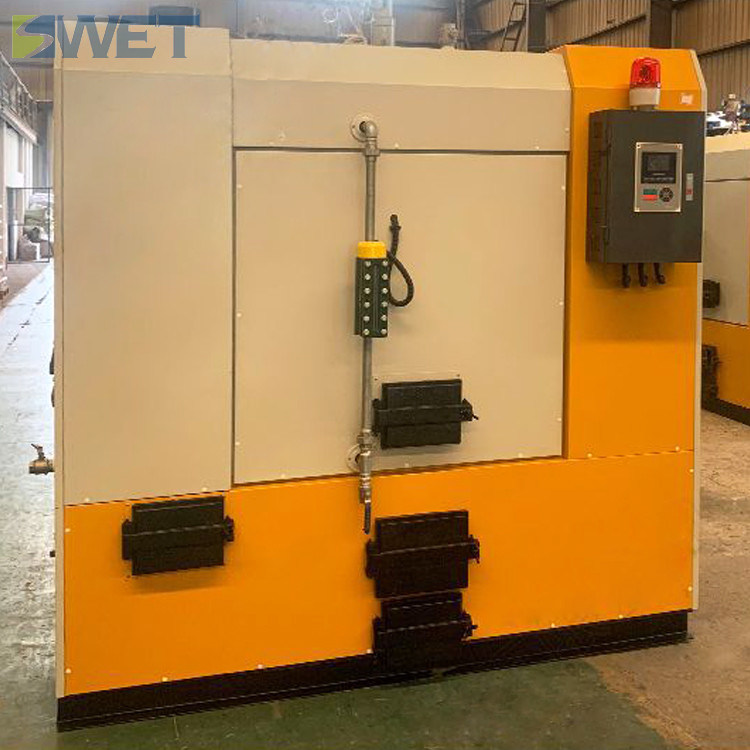

High efficiency 1.0 ton 0.7Mpa 1.0Mpa 1.2Mpa low pressure wood chip steam boiler for machinery industry
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1000 Set/Sets Per Year |
| Place of Origin: | Henan China | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | LSS0.3-0.7-S-3007 |
|
Detail Information |
|||
| Rated Evaporation: | 300kg/h | Weight: | 1150kg |
|---|---|---|---|
| Style: | Vertical | Design Fuel: | Biomass |
| Warranty: | 12months | Color: | Customer Requirements |
| Highlight: | industrial biomass boiler,small steam boiler |
||
Product Description
Product description
1. Environmental protection and durability: biomass steam boiler with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency
2. Environmental protection requirements to meet the new national standards; meticulous design, the use of table steel is much higher than peers Standard
3. the main body of biomass boiler in strict accordance with the A-class boiler manufacturing process requirements, by holding the national boiler pipe pressure vessel welder welder for boiler welding, durable.
Product advantages
1, Combustion mode adopted by the Chinese inspection hospital inspection according to fuel and gas test of the standard of combustion machine, high efficiency, high thermal efficiency.
2, One-click operation, just the water and electricity installed, press the power switch, the steam generator, would be the automatic operation, easy security, greatly reduce the labor intensity of operators.
3. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, the water inlet pipe can be, saving installation costs and a lot of installation materials;
4. Energy saving fuel, is a renewable resource, operating costs is one sixth of electric boilers, oil boiler is one-third;
5. The overall modular factory, small size, less than half a ton of steam boiler buckle with this steam generator module combination of alternative solutions
| Boiler product model | LHS0.1-0.7-S | LHS0.15-0.7-S | LSS0.2-0.7-S | LSS0.3-0.7-S | LSS0.4-0.7-S | YDZ0.5-0.7-S |
| preset pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
| Rated evaporation(Kg/h) | 100 | 150 | 200 | 300 | 400 | 500 |
| Maximum fuel consumption(Kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
| Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
| weight(Kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
| Dimensions(Length × width × height)mm |
1600*900 *1900 |
1600*900 *1900 |
2150*950 *2400 |
2000*1400 *2700 |
2700*1100 *2450 |
2200*1500 *2500 |
