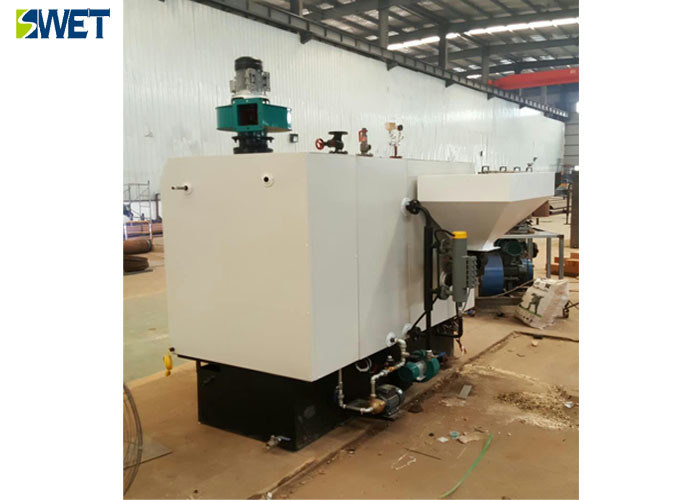

High efficiency 1.0 ton 0.7Mpa 1.0Mpa 1.2Mpa low pressure wood chip steam boiler for machinery industry
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
Minimum Order Quantity : | 1 Set/Sets | Price : | Negotiation |
---|---|---|---|
Packaging Details : | The biomass steam generator is covered with a waterproof film and the transport package is a wooden box. | Delivery Time : | 10-15 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement | Supply Ability : | 1000 Set/Sets Per Year |
Place of Origin: | Henan China | Brand Name: | SWET |
---|---|---|---|
Certification: | ISO9001 | Model Number: | LSS0.3-0.7-S-3001 |
Detail Information |
|||
Rated Evaporation: | 300kg/h | Weight: | 1150kg |
---|---|---|---|
Preset Pressure: | 0.7mpa | Rated Steam Temperature: | 170℃ |
Thermal Efficiency: | 85% | Color: | Customer's Requirement |
Design Fuel: | Biomass | Warranty: | 12 Months |
Fuel: | Biomass,wood Pellet,straw | Usage: | Industrial,Other |
Highlight: | industrial biomass boiler,small steam boiler |
Product Description
Product description
1. The steam boiler fuel is energy-saving and environmentally friendly biomass.
2. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler.
3. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle
4. The steam generator fuel is energy-saving and environmentally friendly biomass.
Product advantages
1,Combustion mode adopted by the Chinese inspection hospital inspection according to fuel and gas test of the standard of combustion machine, high efficiency, high thermal efficiency.
2, One-click operation, just the water and electricity installed, press the power switch, the steam generator, would be the automatic operation, easy security, greatly reduce the labor intensity of operators.
3. The product belongs to the national inspection-free, eliminating the complicated examination and approval procedures;
4. Semi-gasification combustion, with a reasonable rationale, high thermal efficiency, emissions are not visible to the dust, fully meet the national emission requirements of the boiler;
5. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, water inlet pipe can be, saving installation costs and a lot of installation materials;
6. Energy saving fuel, is a renewable resource, operating costs is one sixth of electric boilers, oil boiler is one-third;
7. The overall modular factory, small size, less than half a ton of steam boiler buckle with this steam generator using the modular combination of alternatives.
Generator product model | LHS0.1-0.7-S | LHS0.15-0.7-S | LSS0.2-0.7-S | LSS0.3-0.7-S | LSS0.4-0.7-S | YDZ0.5-0.7-S |
preset pressure(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Rated steam temperature(℃) | 170 | 170 | 170 | 170 | 170 | 170 |
Rated evaporation(Kg/h) | 100 | 150 | 200 | 300 | 400 | 500 |
Maximum fuel consumption(Kg/h) | 17 | 25 | 34 | 47 | 65 | 80 |
Thermal efficiency | 85% | 85% | 85% | 85% | 85% | 85% |
weight(Kg) | 600 | 700 | 1020 | 1150 | 1600 | 2700 |
Dimensions(Length × width × height)mm |
1600*900 *1900 |
1600*900 *1900 |
2150*950 *2400 |
2000*1400 *2700 |
2700*1100 *2450 |
2200*1500 *2500 |
