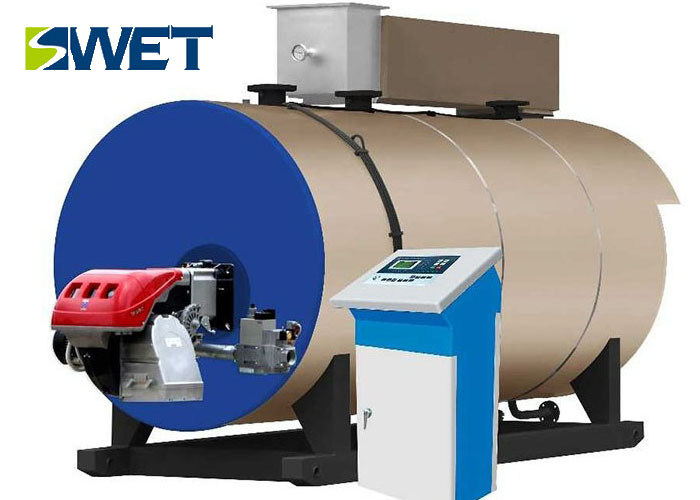

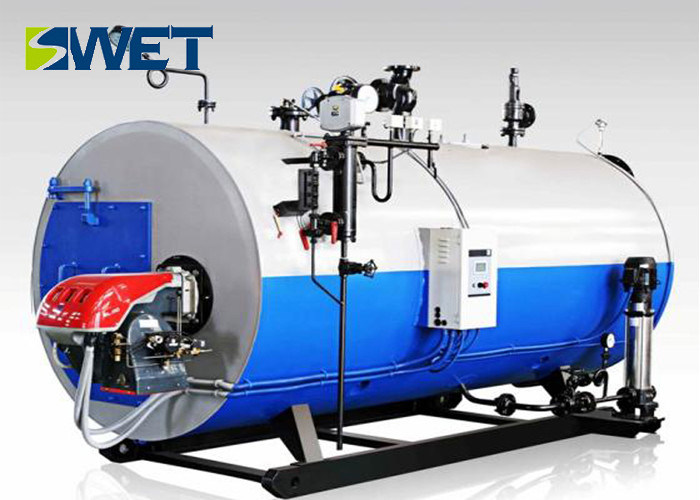

300kg 0.7Mpa 1.0Mpa 1.2Mpa industrial heating gas fired steam boiler
Contact Person : Swet Lee
Phone Number : +8618736903078
WhatsApp : +8618736903078
| Minimum Order Quantity : | 1 SET | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Wooden boxes plus plastic paper packaging | Delivery Time : | 30 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1200 Sets / Year |
| Place of Origin: | HENAN,CHINA | Brand Name: | SWET |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | WNS2 |
|
Detail Information |
|||
| Rated Capacity/t/h: | 2 | Working Pressure/MPA: | 1.0 |
|---|---|---|---|
| Steam Temperature/℃: | 184 | Feed Temperature/℃: | 20 |
| Testing Efficiency/%: | 95.81 | Gas Consumption/Nm3/h: | 160 |
| Highlight: | oil steam boiler,industrial electric steam boiler |
||
Product Description
Advantages
1. Boiler with light oil and gas for fuel, can also be used for city gas or liquefied petroleum gas, wide fuel adaptability, high efficiency and energy saving, low operation cost.
2. Using 80mm thick aluminum silicate fiber insulation layer, light weight, good heat insulation effect, small heat loss.
Advanced and reasonable design
WNS series steam boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality.
A large combustion chamber which increases the radistion heating furnace
Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas , the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.
| WNS series automatic gas (oil) steam energy saving boiler product selection form | ||||||||
| Model | Rated capacity | Working pressure | Steam temperature | Feed temperature | Testing efficiency | Diesel consumption | Gas consumption | Outline dimension |
| Unit | t/h | Mpa | ℃ | ℃ | ％ | Kg/h | Nm³/h | mm(L*W*H) |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 97.51 | 1276.63 | 1459 |
8870*3550 *3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/197/204 | 105 | 97.2 | 985.25 | 1126 |
7450*3520 *4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 96.75 | 732.59 | 837.25 |
6370*2812 *3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 96.7 | 576.84 | 659.25 |
6000*2920 *3403 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 96.58 | 379.32 | 433.51 |
5470*2770 *3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 96.48 | 358.16 | 409.33 |
5160*2410 *3015 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 96.3 | 292.45 | 334.23 |
4880*2710 *2600 |
| WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 95.99 | 214.48 | 245.12 |
4762*2447 *2469 |
| WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 95.81 | 143.26 | 163.72 |
4030*2010 *2210 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | ||||||||
